Bag Unloading Machine

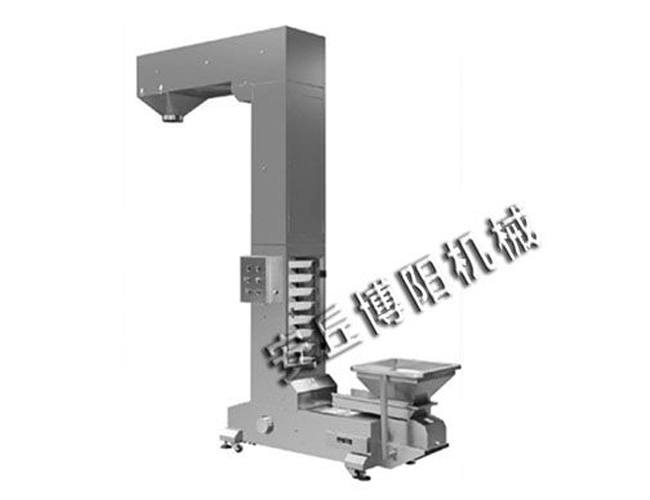

The Z-type bucket elevator is used in a closed casing to transport material through a loading bucket hung on the chain. It can delivery material horizontally or vertically or combined mode. It can be fed at a single or multiple points and discharge in single or multi-point places by discharge device. Fully enclosed, no leakage or no pollution. It is suitable for conveying all kinds of powdery materials and granular materials best for non-sticky materials. The most advantage of this equipment is that its composition is flexible, that make the material damaged in lower rate and can prevent the generation of defective product. It is suitable for various occasions where materials need to be softly treated.
     A bulk material is an object that is large and uncountable, such as powder, granules, blocks, and so on. The  continuous bucket elevators are special designed by our company to transport such bulk materials from one or multi ports to a single discharge port at the other end continuously without any connection. It can be customized in horizontal or vertical or slope mode according to needs of customer.

I.Z-type bucket elevator data

Bucket volume： about105L     0.105M3

Hopper volume：abou1.8L       0.0018M3

Hoppers loaded per minute: <70pcs

Feeder power：1KW          feeding motor power：380v  750w

Frame and box material：carbon steel  plastic spraying

Feeding hopper material: food grade plastic

II.Z-type bucket elevator components

1, feeder; 2, frame and box; 3, feeding hopper; 4, driving part: geared motor; 5, sprocket; 6, chain; 7, control part: automatic start & stop.
